500Nits 55 Inch Slim Bezel Original LCD Panel Wall-Mounted/Cabinet Video Wall For Advertisement
Item Detail:
LED direct-lit backlight with uniform brightness and no boundary shadow.
Resolution: 1920 x 1080
High display resolution, and delicate image with rich color;
High definition, high brightness, high color gamut DID LCD screen with 178° wide angle.
Large display area with light weight Longer display lifespan
Multiple jointing methods, applicable for various scenes.
Stable running and low maintenance cost, support 24 hours continuous wokring.
Metal case enhances the function of anti-radiation, anti-magnetic filed and strong electric field interference.
Working humidity: 10% ~ 90%, able to work under harsh envionment.
55inch TFT-LCD video wall with semaless bezel and 700cd/m2 high brightness, so the outlooking is like LED wall screen, but resolution is 1920*1080, DP connector is on option, support vertical and horizontal installation.
You can make full screen displaying or random combination displaying, we will supply the full solution including wall-mount bracket/floorstanding cabinet/moving bracket with wheels, HD.MI cables, CAT5 cables/Lan cables, RS232 cables, COM connector and software, so we're one-stop supplier for you.

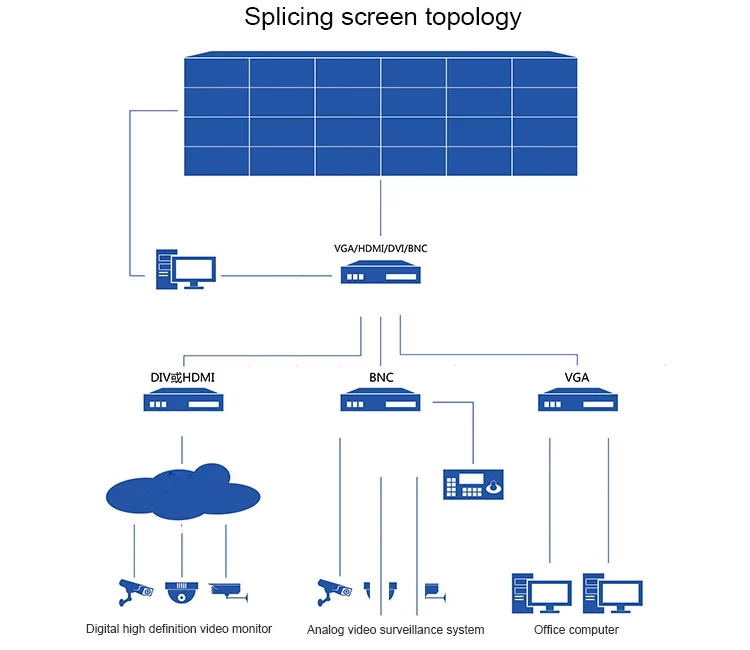

Signal input can be a computer or a media player box, we can also inbuilt speaker for the system.
| Specification | ZXT-LVD550L
| Panel Size | 55"LED |
| Panel brand | Original LG A level |
| Aspect Ratio | 16:9 |
| Visual Angle | Horizontal 178/Vertical178 |
| Brightness | 500cd/sqm |
| Seamless Bezel | YES |
| Back light | LED backlight |
| Contract Ratio | 3500:1 |
| Resolution Ratio | 1920*1080 |
| Color Components | 10 Bits |
| Response Time | 8ms |
| Power Consumption | 120W/150W |
| Standby power consumption | 10W |
| Power Supply | Input:AC110-220V-50/60Hz |
| Life of Panel | 60000Hours |
| Panel Display Area | 1209.6*680.4mm |
| Outline Dimension | 1213.5*684.3*118.1mm |

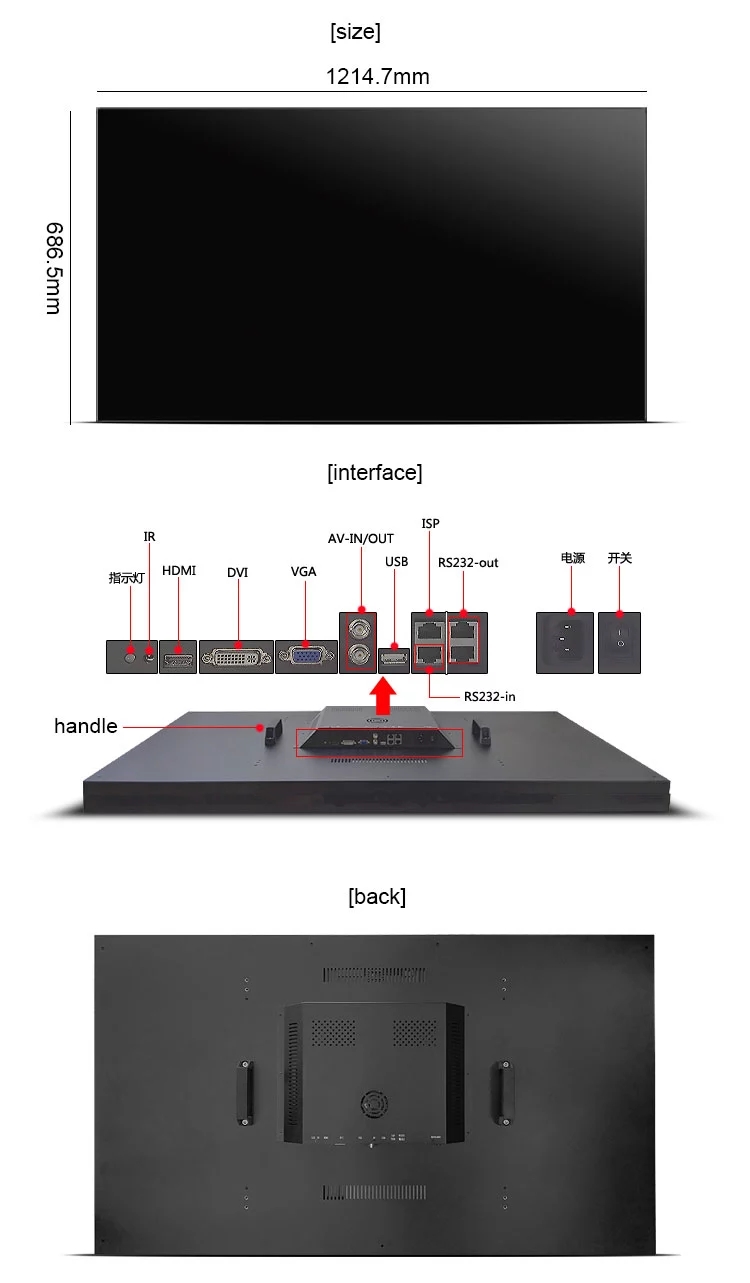

| Port | Input: HD.MI*1,VGA*1,DVI*1,AV*2,RS-232*1,Output: AV*1,RS-232*2 |
| VGA/DVI Resolution Ratio | 640*480,800*600,1024*768,1280*1024,1600*1200,1920*1080 |
| HDMI Resolution Ratio | 480I,480P,576I,720P,1080I,1080P |
| Split Screen/PIP Mode | Two signals image or PIP |
| Splice Function | Multiscreen Splice Function(image processing Function) |
| Carton Packing | 2pc/carton, carton size: 135*34*81cm, G.W.:58kg |
| Wooden box packing | 7pc/wooden box, wooden box size:140*128*98cm, G.W.:281kg |
| Bracket carton packing(for 7pc system) | 146*34*25cm, G.W.:33kg
|
