New type USB Touch Foil Film 43 Inch Plug And Play For Windows
Interactive touch foil Main Feature:
1. Safety and robust Anti-scratch, laminate on the back of glass Waterproof, dust-proof, bullet-proof, Acid-proof, No expose components, safety. No mechanical components with long life
Industrial temperature range: –20 °C to + 80 °C
2. Art and Sci-Fi High transparency ≥97%, glass-level transparency No bezel of touch area Thin and light, the sensor thickness only 0.17mm Thru-glass touch, the maximum thickness of glass can reach 20mm. Only hands valid, no touch action of metal, plastic,and so on.
3. Excellent experience Zero pressure touch, even with glove. Mouse function with Zoom in/out and rotation. 10 points Multi-touch, Support TUIO & Windows Native multipoint port Precise touch & real-time response Rapid handwriting performance
4. Advanced features Low power consumption, the maximu power consumption is only 0.5w
Flexible, could be applied to curve surface touch screen The film sensor could be laminated on any smooth non-metallic flat Various size from 30" to 130", lowest cost customization.
Specification:
| Size | 24-130 inch |
| Technical rationale | Improved projected capacitive Improved projected capacitive Nano-silver wire mesh matrix substitute ITO layer |
| Series | MT-24K |
| Touch Points | 10 points |
| Touch deviation | 1mm |
| Sensor Number | 24576/no analog switches |
| Scan speed | 25 ms / frame |
| Consumption | 1.5W |
| Support Customization | Irregular size |
| Film thickness | Almost 100um |
| Light transmittance | 95% |
| Supply voltage | 5V USB |
| Transmission mode | USB2.0 |
| Transmission distance | Almost 5m Plus USB signal amplifier |
| Safe distance | 3mm/the distance between the LCD screen and the film |
| Ambient temperature | -20 ℃ to + 70 ℃ |
| Humidity | 0-95% |
| Ambient light | The whole point of the anti-glare |
| Touch support | Click, drag, zoom, rotate |
| Sensing distance | ≤20mm |
| Drive Type | Free drive |
| Calibration: | Software calibration /calibration support regional five-point calibration |
| Program Type | Windows7, windows8 (32-bit / 64-bit) |
| Program level | The underlying kernel-level driver |
| Technical Certification | EC.1282.0A131017.STP2755 |
| Packing list | 1 * Touch film circuit control board * 1 USB cable * 1 |
Advantages:
1. Projected Capacitance Touch Foil Technology
2. Works on glass
3. Easy to use or install, and Simple to set up for touch foil
4. Durable flexible touch foil, very light and thin touch foil
5. Perfect Single-touch and dual-touch, Quick touch response speed
6. Fixing options: removable and permanent, Can be permanent or replaceable
7. Can be attached to almost every surface: Shop window, Glass, Acrylic and Rear projection film and any other non-metallic material
8. Available Size: from 30 to 130 inches sheets, bigger available on request
Applications:

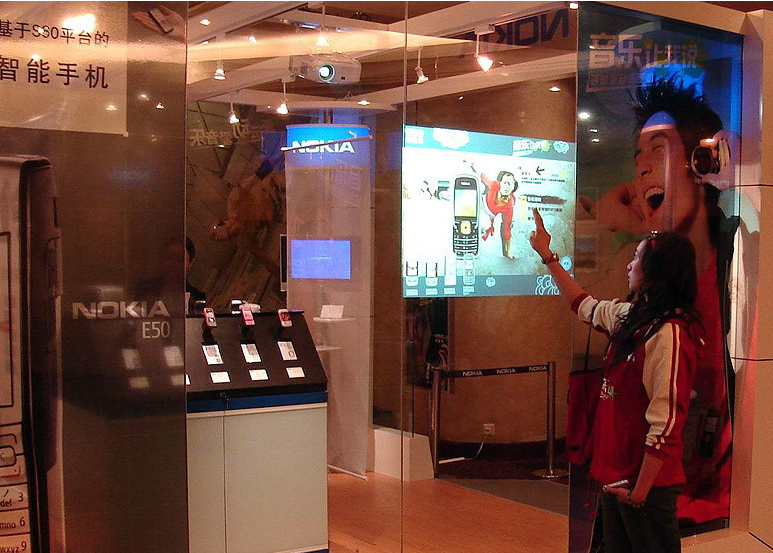

1. Shop/Store window displays
2. Indoor and outdoor kiosks
3. Glass partitions
4. Corporate offices
5. Training and meeting rooms
6. Exhibitions and conferences
7. Museums and visitor attractions
Product Tags:
|
|
Custom USB Multi Interactive Touch Film , Durable Touch Screen Film For Monitor Images
|
