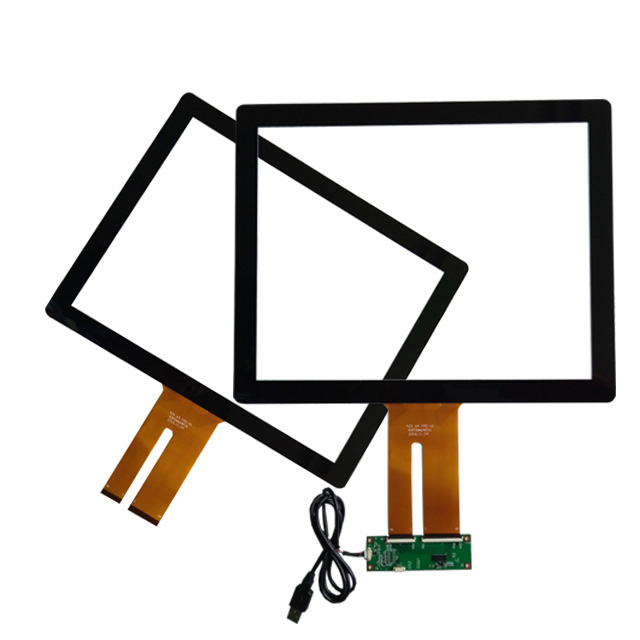

17 Inch Touch Screen Ips Capacitive 10 Points Multi-Touch Screen Projective Capacitive Touch Sensor Payment Kiosk
Projected Capactive touch screen Description:
ZXT now developed multi-point capacitive touch screen, mainly in G+G structure based,
covering the 10.4" to 32" (customizable), supports 10points touch, slide, flip, etc. function. real touch points to support handwriting, pen function, the focus for Touch monitor, Educational, medical, Computer machine, Tablet, Kiosk,POS machine,Singsmart,Automotive and other industrial applications.
Specification:
| Size | Ratio | Frame Size | Viewable Area | Sensor Size | Active Area | Cover Thickness (mm) |
| (Inch) | WxH(mm) | WxH(mm) | WxH(mm) | WxH(mm) |
| 15 | 4:3 | 346.08*270.02 | 305.00*229.01 | 323.10*251.79 | 307.10*231.07 | 1.1 |
| 15.6 | 16:9 | 387.00*231.00 | 344.00*194.00 | 362.00*222.00 | 346.00*196.00 | 1.1 |
| 17 | 4:3 | 377.00*309.00 | 338.92*271.34 | 363.92*301.34 | 340.92*273.34 | 1.1 |
| 18.5 | 16:9 | 440.80*271.40 | 410.80*231.40 | 430.80*261.40 | 412.80*233.40 | 1.1 |
| 19 | 4:3 | 421.00*346.00 | 377.32*302.06 | 402.36*334.06 | 379.32*304.06 | 1.1 |
| 21.5 | 16:9 | 524.00*321.80 | 478.00*269.80 | 508.00*303.80 | 480.00*271.80 | 1.8 |
| 23.6 | 16:9 | 555.50*343.00 | 525.50*297.00 | 545.50*333.00 | 527.50*299.00 | 1.8 |
| 27 | 16:9 | 658.00*416.00 | 598.00*336.00 | 640.00*390.00 | 600.00*338.00 | 1.8 |
| 32 | 16:9 | 765.00*466.50 | 698.70*393.30 | 750.00*450.00 | 704.00*396.00 | 1.8 |
Capacitive touch screen
> Can withstand more than 50000000 point
> 4096x4096 Resolution
> USB Interface
> High accuracy and sensitivity
> Glass + Glass or PET + Glass
> Finger, gloved hand and touch pen activation
> Sensitive and fast response
> Our products have passed CE, FCC, ROHS certification!
Condition Requirements
| Environmental | Operation Temperature | -20℃ ~ 70℃ |
| Storage Temperature | -30℃ ~ 80℃ |
| Reliability | Constant Temperature/Humidity | 70℃/90RH/240hrs |
| Heat Cycle | 70℃/240hrs |
| Cold Cycle | -30℃/240hrs |
| Thermal Cycle | -30℃ ~ 80℃*50Cycle |
| Mechanical | Connection Tail | FPC Material |
| Surface Hardness | ≥6H |
| Active Force | ≤10g Finger |
| Structure | Glass+Glass |
| Optical | Transparency | ≥85%±5%(Measured by BYK-Gardner) |
Advantage:
-Capacitive touch technology.
-Highest resolution, sensitive and fast response
-Easy to install with LCD monitor
-Dustproof and Waterproof maintenance free.
-Touch screens can be built in specific dimensions requested by clients in custom orders
-Flexible interaction; waterproof presentation, Gloves touch,10mm glass, replaceable cover glass and anti-interference presentation.
Application:
-Point-of-information kiosks
-Vending and ticket sales
-Electronic catalogs
-Gaming, lottery, and amusement
-Public pay phones
-Multimedia marketing
-Banking/financial transactions
-Industrial control rooms
-Computer-based training
