17-Inch Integrated Windows Monitor for Industrial Automation and Logistics Operations

  • 1
  • 2

Brand Name : ZXTLCD

Model Number : ZXTLCD-E170WPSWFS

Certification : CE/Rohs/FCC

Place of Origin : Guangdong, China

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 2000 pcs per month

Delivery Time : 3-5 working days

Packaging Details : wooden case, carton, flight cases are optional

Screen Size : 17.0 inch

Aspect Ratio : 16:9

Brightness : 400 cd/m²

Install Type : Embedded, open-frame, wall-mounted, floor-standing

Suitable Environment : Outdoor; Indoor

Applications : Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an

Contact Now

17-Inch Integrated Windows Monitor for Industrial Automation and Logistics Operations

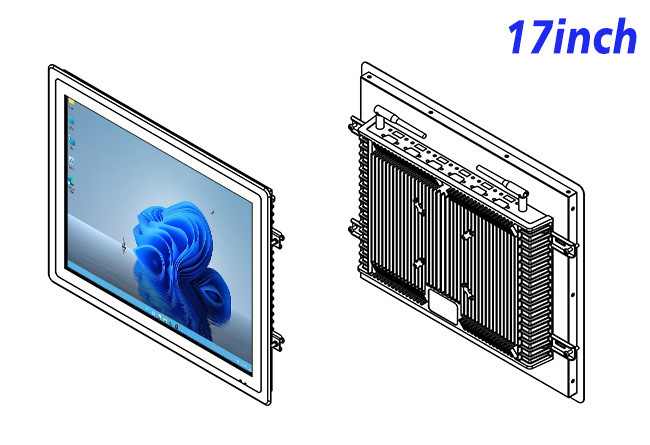

The 17-inch integrated monitor is a perfect choice for industrial automation and logistics operations, offering a seamless display experience in environments that demand precision and reliability. With a 1280 x 1024 resolution and an impressive 1200:1 contrast ratio, the screen delivers vibrant and clear visuals, ensuring that critical data is always easy to read, whether for controlling machinery or monitoring automated processes. Its versatility is further enhanced by built-in Wi-Fi and multiple ports, including USB and HDMI, allowing it to integrate seamlessly into existing automation systems. This makes it an excellent solution for use in control panels, warehouse systems, and manufacturing dashboards, where the monitor needs to handle a wide variety of tasks simultaneously.

LCD Panel ParametersScreen Size17 Inch
Display Area337.92 mm.(Height) X 270.34(Width)mm.
Aspect Ratio16 : 9
LCD Typea-Si TFT-LCD Monitor
Maximum Resolution1280 X 1024
Display Color16.7M , 72% NTSC
Brightness250cd/m²
Contrast Ratio1200 : 1
Viewing Angle (Up/Down/Left/Right)89°/89°/89°/89° (Type)(CR≥10)
Response Time20ms
LCD Panel Lifespan (Hours)60,000(Hour.)
Field Frequency60Hertz
Audio parametersAudio systemStereo
Speaker size≈ 99 x 45 x 20 mm
Impedance8 Ohm
Power2 x 5 Watt
Loudness> 80 Decibel
Interface4-pin connector
Internal computer configuration
(Choose one of two)
CPUIntel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHzIntel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz
Graphics CardIntegrated Graphics Card Intel® HD 4600Integrated Graphics Card Intel® HD 530
RAM4GB8GB
Storage Memory Capacity128GB256GB
OSWin10 or win11 OptionalWin10 or win11 Optional
Wi-Fi Built-inSpeed 150Mbps 802.11n wifi IntegratedSpeed 150Mbps 802.11n wifi Integrated
Media FormatVideo Formatwmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc.
Audio FormatMP3, WMA
Photo FormatBMP, JPEG, PNG, GIF etc.
Onboard InterfaceNetwork portRJ45 X 1, 10M/100M Adjustable Ethernet
HDMI1
USB4
PowerPower SupplyAlternating Current 100V~240V, 50/60Hz
Maximum Power Loss≤ 30 Watt
Standby Mode Power Loss< 1 Watt
FeaturesOperating Temperature0℃ ~ 50℃
Storage TemperatureBelow 10℃ ~ +60℃
Package SizeDevice Dimensions400.6 X 338.6 X 56.7 mm.
Net Weight5.5 Kilogram
Package Size48 X 39 X 17 Centimeter
Gross Package Weight per Unit6 Kilogram


In logistics and inventory management, the 17-inch display shines as an indispensable tool for tracking stock, monitoring shipments, and improving operational efficiency. Its compact size makes it ideal for integration into warehouse control stations, where real-time tracking of goods and barcode scanning systems are essential. With its brightness of 250cd/m², the screen ensures clear visibility even in less-than-ideal lighting conditions. The built-in speakers and the ability to handle multiple media formats make it a powerful tool for dispatch teams, providing both visual and audio alerts during package handling, ensuring quick responses in busy logistics hubs or distribution centers.
17-Inch Integrated Windows Monitor for Industrial Automation and Logistics Operations17-Inch Integrated Windows Monitor for Industrial Automation and Logistics Operations17-Inch Integrated Windows Monitor for Industrial Automation and Logistics Operations17-Inch Integrated Windows Monitor for Industrial Automation and Logistics Operations17-Inch Integrated Windows Monitor for Industrial Automation and Logistics Operations17-Inch Integrated Windows Monitor for Industrial Automation and Logistics Operations
Beyond its use in industrial and logistics operations, the 17-inch Windows-based display is highly effective in security systems and surveillance monitoring. Security stations can integrate this unit into video monitoring setups, offering clear, high-quality visuals for real-time monitoring of live feeds or automated alarm systems. The wide viewing angles and excellent contrast ratio ensure that operators can always get a clear picture, even when observing from varying angles. Moreover, with its low power consumption and long lifespan, it is an ideal solution for environments requiring continuous 24/7 operation, like security control rooms, critical infrastructure monitoring, and traffic management centers.
