15.6-Inch Windows Screen for Retail Kiosks and Digital Signage
The 15.6-inch Windows display offers an exceptional solution for retail kiosks and digital signage, providing businesses with a powerful tool for interactive customer engagement. With its 1920x1080 resolution, vibrant 16.7 million colors, and 250cd/m² brightness, it ensures clear, vivid content delivery in high-traffic environments. Whether used in shopping malls for self-service kiosks or in restaurants for digital menus, this compact screen effectively captures the attention of passersby, offering dynamic advertising, product displays, or information. The wide viewing angle ensures customers can view the content from almost any position, making it ideal for advertising displays in storefronts or event locations.
| LCD Panel Parameters |
Screen Size |
15.6 Inch |
| Display Area |
344.16 mm.(Height) X 193.59(Width)mm. |
| Aspect Ratio |
16 : 9 |
| LCD Type |
a-Si TFT-LCD Monitor |
| Maximum Resolution |
1920 X 1080 |
| Display Color |
16.7M , 72% NTSC |
| Brightness |
250cd/m² |
| Contrast Ratio |
700 : 1 |
| Viewing Angle (Up/Down/Left/Right) |
89°/89°/89°/89° (Type)(CR≥10) |
| Response Time |
30ms |
| LCD Panel Lifespan (Hours) |
60,000(Hour.) |
| Field Frequency |
60Hertz |
| Audio parameters |
Audio system |
Stereo |
| Speaker size |
≈ 99 x 45 x 20 mm |
| Impedance |
8 Ω |
| Power |
2 x 5 Watt |
| Loudness |
> 80 Decibel |
| Interface |
4-pin connector |
Internal computer configuration
(Choose one of two) |
CPU |
Intel i5-4310M Generation 4, Dual-Core Four Threads, Main frequency can reach up to 2.7GHz |
Intel I5-6100T Generation 6, Dual-Core Four Threads, Main frequency can reach up to 3.2GHz |
| Graphics Card |
Integrated Graphics Card Intel® HD 4600 |
Integrated Graphics Card Intel® HD 530 |
| RAM |
4GB |
8GB |
| Storage Memory Capacity |
128GB |
256GB |
| OS |
Win10 or win11 Optional |
Win10 or win11 Optional |
| Wi-Fi Built-in |
Speed 150Mbps 802.11n wifi Integrated |
Speed 150Mbps 802.11n wifi Integrated |
| Media Format |
Video Format |
wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 etc. |
| Audio Format |
MP3, WMA |
| Photo Format |
BMP, JPEG, PNG, GIF etc. |
| Onboard Interface |
Network port |
RJ45 X 1, 10M/100M Adjustable Ethernet |
| HDMI |
1 |
| USB |
4 |
| Power |
Power Supply |
Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss |
≤ 30 Watt |
| Standby Mode Power Loss |
< 1 Watt |
| Features |
Operating Temperature |
0℃ ~ 50℃ |
| Storage Temperature |
Below 10℃ ~ +60℃ |
| Package Size |
Device Dimensions |
383.4 X 243.4X 55.7mm. |
| Net Weight |
5 Kilogram |
| Package Size |
45 X 32 X 15Centimeter |
| Gross Package Weight per Unit |
5.5 Kilogram |
Beyond retail, this 15.6-inch screen serves as an excellent option for information boards and wayfinding systems in public spaces. Its compact design makes it perfect for integration into office lobbies, airports, conference halls, and train stations, providing passengers and visitors with real-time updates such as flight information, directions, or event schedules. The easy integration with network interfaces such as Wi-Fi and Ethernet enables remote content management, making it a versatile choice for digital signage networks. Whether used for advertising promotions, directional signage, or emergency notices, this display offers a flexible solution for any public-facing service.
For businesses looking to add an extra layer of interactivity, this 15.6-inch screen is also ideal for self-checkout systems, ticket vending machines, and customer feedback terminals. Its touchscreen compatibility and integrated Wi-Fi connectivity allow users to quickly access services, purchase products, or provide feedback, all from an intuitive interface. Additionally, its high durability and low power consumption make it a reliable option for installations that require continuous operation, such as advertising panels in transport hubs or information kiosks in shopping centers. With its clear visuals and versatile applications, this screen brings an innovative edge to any business looking to enhance its customer experience.
|
|

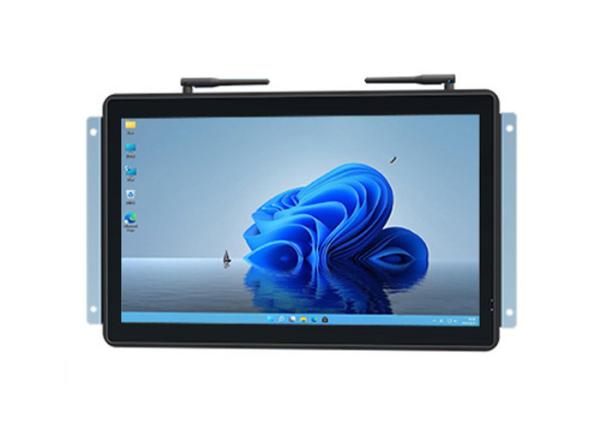

15.6-Inch Windows Screen for Retail Kiosks and Digital Signage Images
|
