19-Inch Integrated Android Touch Display for Access Control and Diagnostics Tools

Name: 19Inch Integrated Android Touch Display for Access Control and Diagnostics Tools
Brand: ZXTLCD
Price: 1 USD

Wholesale 19-Inch Integrated Android Touch Display for Access Control and Diagnostics Tools from china suppliers

Brand Name : ZXTLCD

Model Number : ZXTLCD-E190WACTS

Certification : CE/Rohs/FCC

Place of Origin : Guangdong, China

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 2000 pcs per month

Delivery Time : 3-5 working days

Packaging Details : wooden case, carton, flight cases are optional

Screen Size : 19.0 inch

Aspect Ratio : 16:9

Brightness : 400 cd/m²

Install Type : Embedded, open-frame, wall-mounted, floor-standing

Suitable Environment : Outdoor; Indoor

Applications : Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an

Contact Now

19-Inch Integrated Android Touch Display for Access Control and Diagnostics Tools

LCD Panel Parameters	Screen Size	19 Inch
	Display Area	376.32 mm.(Height) X 301.06(Width)mm.
	Aspect Ratio	4 : 3
	LCD Type	a-Si TFT-LCD Monitor
	Maximum Resolution	1280 X 1024
	Display Color	16.7m , 73% NTSC
	Brightness	250cd/m²
	Contrast Ratio	1000 : 1
	Viewing Angle (Up/Down/Left/Right)	89°/89°/89°/89° (Type)(CR≥10)
	Response Time	14ms
	LCD Panel Lifespan (Hours)	60,000(Hour.)
	Field Frequency	100Hertz
PCAP Touchscreen Panel Parameters	Touch Pattern	Projected Capacitive Touchscreen Monitor
	Touch Points	10 Points
	Cover Glass	Morse Glass Size 7 Physically reinforced to prevent explosion
		Glass 3 mm. Optical mount to reduce parallax
	Glass Transmission	>85% (Higher light transmission depends on glass coating technology For example AR/AG) >85%
	Response Speed	< 6ms
	Touch Accuracy	More than 90% of the touch area ±2 mm
	Touch Method	Inch Stylus
	Output Format	Coordinate Output
	Click Time	Unlimited
	Smallest Touch Size	5 mm
	Long-lasting Durability	Yes, Available
	Touch Interface	USB
	Operating Temperature and Humidity	Below 10℃ ~ +50℃, ≤ 85%RH
	Storage Temperature and Humidity	Less than 20℃ ~ +60℃, ≤ 90%RH
Audio parameters	Audio system	Stereo
	Speaker size	≈ 99 x 45 x 20 mm
	Impedance	8 Ohm
	Power	2 x 5 Watt
	Loudness	> 80 Decibel
	Interface	4-pin connector
Built-in Android PCB Configuration (Choose one of two)	CPU	Quad-Core RK3288, 1.8GHz	Quad-Core RK3568,2.0GHz
	GPU	Mali-T764	Mali-G52
	RAM	2GB	4GB
	ROM	32GB	32GB
	Android System	Android 10.0	Android 11.0
	Ethernet	1 x RJ45, Ethernet 1,000 Mbps	1 x RJ45, Ethernet 1,000 Mbps
	Wireless Internet	2.4Gigahertz	2.4Gigahertz/5Gigahertz, Wi-Fi 6
	Bluetooth	4.2	5
	Interface	USB2.0 x 2	USB2.0 x 2
			HDMI IN x 1
Power	Power Supply	Alternating Current 100V~240V, 50/60Hz
	Maximum Power Loss	≤ 30 Watt
	Standby Mode Power Loss	< 1 Watt
Features	Operating Temperature	0℃ ~ 50℃
	Storage Temperature	Below 10℃ ~ +60℃
Package Size	Device Dimensions	436.5 X 364.5 X 50 mm.
	Net Weight	6.5 Kilogram
	Package Size	52 X 44 X 15 Centimeter
	Gross Package Weight per Unit	7 Kilogram

19-Inch Integrated Android Touch Display for Access Control and Diagnostics Tools

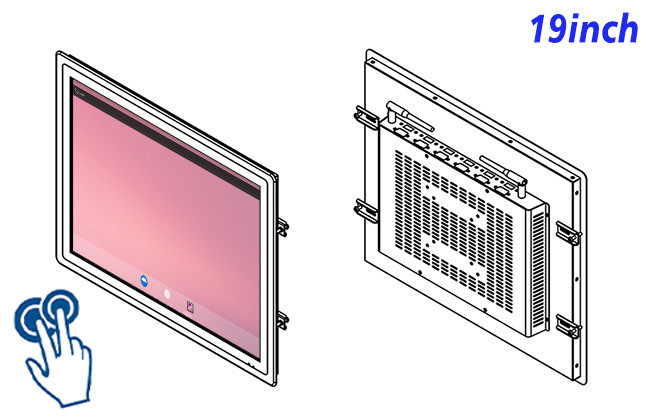

19-Inch Integrated Android Touch Display for Access Control and Diagnostics Tools Images
