12.1-Inch Built-In Screen for Medical Devices and Factory Dashboards

  • 1
  • 2

Brand Name : ZXTLCD

Model Number : ZXTLCD-E121WB

Certification : CE/Rohs/FCC

Place of Origin : Guangdong, China

MOQ : 1

Price : negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 2000 pcs per month

Delivery Time : 3-5 working days

Packaging Details : wooden case, carton, flight cases are optional

Screen Size : 12.1 inch

Aspect Ratio : 16:9

Brightness : 400 cd/m²

Install Type : Embedded, open-frame, wall-mounted, floor-standing

Suitable Environment : Outdoor; Indoor

Applications : Industrial control, medical equipment, automotive systems, various self-service terminals (new retail vending machines/financial terminals/information kiosks/parcel lockers/storage lockers/garbage recycling cabinets/charging stations, etc.), hospitality an

Contact Now

12.1-Inch Built-In Screen for Medical Devices and Factory Dashboards

LCD Panel Parameters Screen Size 12.1 Inch
Display Area 245.76 mm.(Height) X 184.32(Width)mm.
Aspect Ratio 16 : 9
LCD Type a-Si TFT-LCD Monitor
Maximum Resolution 800 X 600 1280 X 800
Display Color 16.7M 16.7M
Brightness 350 cd/㎡ 400 cd/㎡
Contrast Ratio 1000 :1 1200 :1
Viewing Angle (Up/Down/Left/Right) 89°/89°/89°/89° (Type)(CR≥10) 85°/85°/85°/85° (Type)(CR≥10)
Response Time 30ms 25ms
LCD Panel Lifespan (Hours) 60,000(Hour.)
Field Frequency 60Hertz
Audio Parameters
(External Speaker Option)		 Audio system Stereo
Speaker size ≈ 99 x 45 x 20 mm
Impedance 8 Ohm
Power 2 x 5 Watt
Loudness > 80 Decibel
Interface 4-pin connector
Onboard Interface HDMI Input 1
VGA Input 1
DVI Input 1
USB Type B or any desired USB Type 1
Power Power Supply Alternating Current 100V~240V, 50/60Hz
Maximum Power Loss ≤ 15 Watt
Standby Mode Power Loss < 1 Watt
Features Operating Temperature 0℃ ~ 50℃
Storage Temperature Below 10℃ ~ +60℃

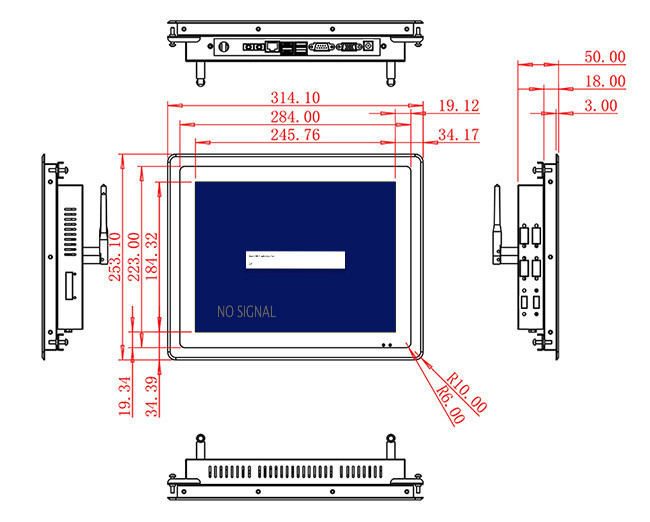

Package Size Device Dimensions 314.1 X 253.1 X 50mm.
Net Weight 3 Kilogram
Package Size 36.8 X 16.3 X 15Centimeter
Gross Package Weight per Unit 4 Kilogram
