23.8-Inch Touch Embedded Screen for Kiosks, Medical Terminals, Industrial Equipment, and Payment Machines
23.8-inch embedded Windows capacitive touchscreen all-in-one machine: Tailored for the petroleum and petrochemical industry
In the wave of digital transformation, the petroleum and petrochemical industry is actively seeking reliable technological solutions to improve production efficiency, ensure work safety, and achieve intelligent management. The 23.8-inch embedded Windows capacitive touchscreen all-in-one machine designed for industrial environments has emerged, meeting the industry's demands for durability and high performance, while also providing new possibilities for the information technology development in the petroleum and petrochemical sector.
23.8-inch Embedded Windows Capacitive Touchscreen All-in-One Machine — A New Experience in Industrial Operations
| LCD Panel Parameters | Screen Size | 23.8 Inch |
| Display Area | 528.2 mm.(Height) X 297.6(Width)mm. |
| Aspect Ratio | 16 : 9 |
| LCD Type | a-Si TFT-LCD Monitor |
| Maximum Resolution | 1920 X 1080 |
| Display Color | 16.7m , 99% sRGB |
| Brightness | 250cd/m² |
| Contrast Ratio | 1000 : 1 |
| Viewing Angle (Up/Down/Left/Right) | 89°/89°/89°/89° (Type)(CR≥10) |
| Response Time | 14Ms |
| LCD Panel Lifespan (Hours) | 60,000(Hour.) |
| Field Frequency | 60Hertz |
| PCAP Touchscreen Panel Parameters | Touch Pattern | Projected Capacitive Touchscreen Monitor |
| Touch Points | 10 Points |
| Cover Glass | Physical toughened Morse magnitude 7 explosion-proof |
| Glass 3 mm. Optical mount to reduce parallax |
| Glass Transmission | >85% (Higher light transmission depends on glass coating technology For example AR/AG) >85% |
| Response Speed | < 6ms |
| Touch Accuracy | More than 90% of the touch area ±2 mm |
| Touch Method | Inch Stylus |
| Output Format | Coordinate Output |
| Click Time | Unlimited |
| Smallest Touch Size | 5 mm |
| Long-lasting Durability | Yes, Available |
| Touch Interface | USB |
| Operating Temperature and Humidity | Below 10℃ ~ +50℃, ≤ 85%RH |
| Storage Temperature and Humidity | Less than 20℃ ~ +60℃, ≤ 90%RH |
Audio Parameters
(External Speaker Option) | Audio system | Stereo |
| Speaker size | ≈ 99 x 45 x 20 mm |
| Impedance | 8 Ohm |
| Power | 2 x 5 Watt |
| Loudness | > 80 Decibel |
| Interface | 4-pin connector |
| Onboard Interface | HDMI Input | 1 |
| VGA Input | 1 |
| DVI Input | 1 |
| USB Type B or any desired USB Type | 1 |
| Power | Power Supply | Alternating Current 100V~240V, 50/60Hz |
| Maximum Power Loss | ≤ 45 Watt |
| Standby Mode Power Loss | < 1 Watt |
| Features | Operating Temperature | 0℃ ~ 50℃ |
| Storage Temperature | Below 10℃ ~ +60℃ |
| Accessories | Power Cord Length | 1.5m |
| HDMI Cable Length | 2m |
| USB-A to USB-B Cable Length | 1.5m |
| Stereo Speaker Size with Connector | 99*45*20mm |
| Stereo Speaker Length | 1.5m |

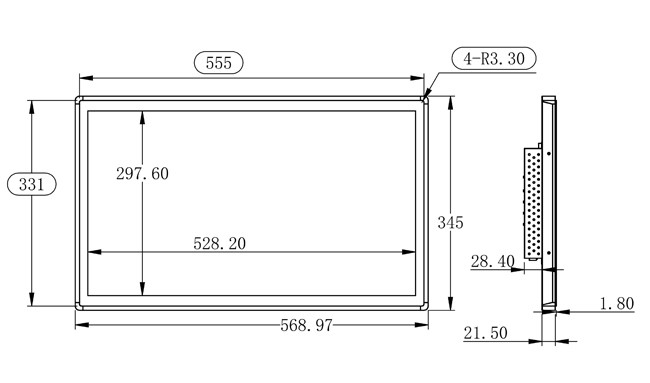

| Package Size | Device Dimensions | 568.97 X 345 X 51.7mm |
| Net Weight | 8 Kilogram |
| Package Size | 62.7 X 40.4 X 10.5Centimeter |
| Gross Package Weight per Unit | 9 Kilogram |
In the petroleum and petrochemical industry, the stability of equipment and the convenience of operation are crucial. With the advancement of technology, more and more enterprises are beginning to adopt the 23.8-inch embedded Windows capacitive touchscreen all-in-one machine as the central hub for equipment integration and control. This device not only features an exquisite design but also packs powerful functionality and compatibility in its compact size, allowing operators to easily complete various tasks through the touchscreen, making it a favorite among many enterprises for its adaptability.
Powerful Functionality and Flexible Applications — 23.8-inch Embedded Windows Capacitive Touch All-in-One Machine
For professionals in the petroleum and petrochemical industry, having equipment that can operate continuously in harsh environments is crucial. The 23.8-inch Embedded Windows Capacitive Touch All-in-One Machine is characterized by its durability and robustness, capable of functioning normally in various complex working environments. Whether monitoring production processes or entering data, this touchscreen all-in-one machine provides efficient support. Its built-in Windows operating system ensures software compatibility and consistency in the user interface, making operation more intuitive and straightforward.
In addition, this all-in-one machine supports multi-touch, enhancing the flexibility and responsiveness of human-computer interaction, making data processing quicker and more accurate. Whether used for real-time monitoring of equipment status or as an information display terminal, it performs excellently, greatly improving operational efficiency and management levels.
In summary, the 23.8-inch embedded Windows capacitive touchscreen all-in-one machine demonstrates irreplaceable value in the petroleum and petrochemical industry with its outstanding performance and wide range of application scenarios. With the continuous advancement of technology, such devices are bound to play an increasingly important role in the future of industrial automation.
